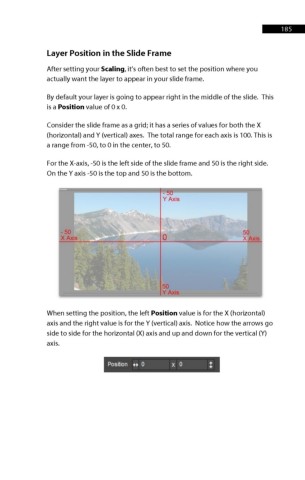

Layer Position in the Slide Frame
After setting your Scaling, it’s often best to set the position where you
actually want the layer to appear in your slide frame.
By default your layer is going to appear right in the middle of the slide. This
is a Position value of 0 x 0.

Consider the slide frame as a grid; it has a series of values for both the X
(horizontal) and Y (vertical) axes. The total range for each axis is 100. This is
a range from -50, to 0 in the center, to 50.

For the X-axis, -50 is the left side of the slide frame and 50 is the right side.
On the Y axis -50 is the top and 50 is the bottom.

- 50
Y Axis

- 50 50
XAxis XAxis

50
y Axis

When setting the position, the left Position value is for the X (horizontal)
axis and the right value is for the Y (vertical) axis. Notice how the arrows go
side to side for the horizontal (X) axis and up and down for the vertical (Y)
axis.

Posrt,on ++ 0 x O t
