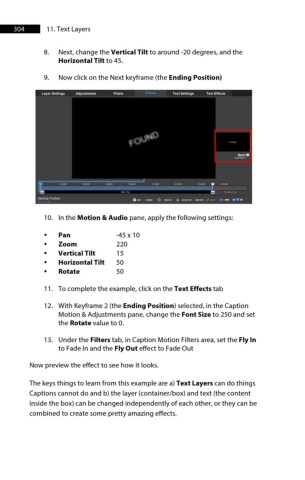

Page 305 - ProShow Producer 9 Final Manual

304 11. Text Layers

8. Next, change the Vertical Tilt to around -20 degrees, and the
Horizontal Tilt to 45.
9. Now click on the Next keyframe (the Ending Position)

10. In the Motion & Audio pane, apply the following settings:

• Pan -45 x 10
• Zoom 220
• Vertical Tilt 15
• Horizontal Tilt 50
• Rotate 50

11. To complete the example, click on the Text Effects tab

12. With Keyframe 2 (the Ending Position) selected, in the Caption
Motion & Adjustments pane, change the Font Size to 250 and set
the Rotate value to 0.
13. Under the Filters tab, in Caption Motion Filters area, set the Fly In
to Fade In and the Fly Out effect to Fade Out
Now preview the effect to see how it looks.

The keys things to learn from this example are a) Text Layers can do things
Captions cannot do and b) the layer (container/box) and text (the content
inside the box) can be changed independently of each other, or they can be
combined to create some pretty amazing effects.
