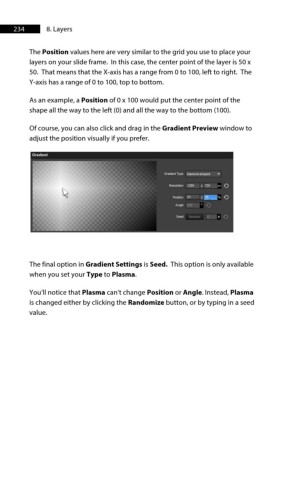

234 8. Layers
The Position values here are very similar to the grid you use to place your
layers on your slide frame. In this case, the center point of the layer is 50 x
50. That means that the X-axis has a range from 0 to 100, left to right. The
Y-axis has a range of 0 to 100, top to bottom.
As an example, a Position of 0 x 100 would put the center point of the
shape all the way to the left (0) and all the way to the bottom (100).
Of course, you can also click and drag in the Gradient Preview window to
adjust the position visually if you prefer.
The final option in Gradient Settings is Seed. This option is only available
when you set your Type to Plasma.
You’ll notice that Plasma can’t change Position or Angle. Instead, Plasma
is changed either by clicking the Randomize button, or by typing in a seed
value.
