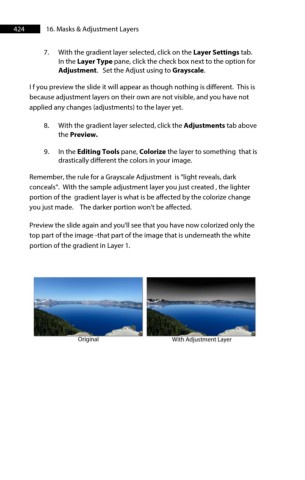

Page 424 - ProShow Producer Manual

424 16. Masks & Adjustment Layers

7. With the gradient layer selected, click on the Layer Settings tab.
In the Layer Type pane, click the check box next to the option for
Adjustment. Set the Adjust using to Grayscale.

I f you preview the slide it will appear as though nothing is different. This is
because adjustment layers on their own are not visible, and you have not
applied any changes (adjustments) to the layer yet.

8. With the gradient layer selected, click the Adjustments tab above
the Preview.

9. In the Editing Tools pane, Colorize the layer to something that is
drastically different the colors in your image.

Remember, the rule for a Grayscale Adjustment is "light reveals, dark
conceals". With the sample adjustment layer you just created , the lighter
portion of the gradient layer is what is be affected by the colorize change
you just made. The darker portion won't be affected.

Preview the slide again and you'll see that you have now colorized only the
top part of the image -that part of the image that is underneath the white
portion of the gradient in Layer 1.
