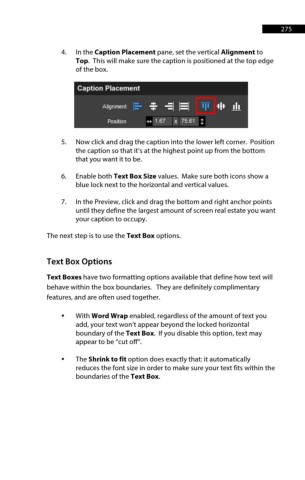

Page 276 - ProShow Producer 9 Final Manual

275 275

4. In the Caption Placement pane, set the vertical Alignment to
Top. This will make sure the caption is positioned at the top edge
of the box.

Caption Placement

: ¾ :1 l=I 111 -tft lli.
Alignment
Posrt1on ++ 1.67 x 75 61 !

5. Now click and drag the caption into the lower left corner. Position
the caption so that it’s at the highest point up from the bottom
that you want it to be.

6. Enable both Text Box Size values. Make sure both icons show a
blue lock next to the horizontal and vertical values.
7. In the Preview, click and drag the bottom and right anchor points
until they define the largest amount of screen real estate you want
your caption to occupy.

The next step is to use the Text Box options.

Text Box Options
Text Boxes have two formatting options available that define how text will
behave within the box boundaries. They are definitely complimentary
features, and are often used together.
• With Word Wrap enabled, regardless of the amount of text you
add, your text won’t appear beyond the locked horizontal
boundary of the Text Box. If you disable this option, text may
appear to be “cut off”.

• The Shrink to fit option does exactly that: it automatically
reduces the font size in order to make sure your text fits within the
boundaries of the Text Box.
